Descriere

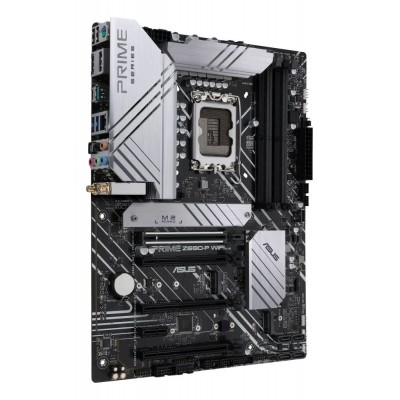

Placa de baza Asus Prime Z690-P WIFI DDR5, Socket LGA 1700, Intel Z690 Chipset ATX motherboard with PCIe 5.0, three M.2 slots, 14+1 DrMOS, DDR4, HDMI, DisplayPort, Intel WiFi 6, 2.5 Gb Ethernet, USB 3.2 Gen 2x2 Type-C, front USB 3.2 Gen 1 Type-C, Thunderbolt 4 support and Aura Sync RGB lighting Intel LGA 1700 socket: Ready for 12th gen Intel processors Enhanced power solution: 14+1 DrMOS, 8+4 pin ProCool connector, alloy chokes and durable capacitors for stable power delivery Comprehensive cooling: Large VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 4 ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking Next-gen connectivity: Intel WiFi 6, DDR5, PCIe 5.0, 2.5 Gb Ethernet, USB 3.2 Gen 2x2 Type-C, front panel USB 3.2 Gen 1 Type-C, Thunderbolt 4 header support

Specificaţii

Specificatii generale
Stare produs	Nou
Garantie	36 luni
Socket	LGA 1700
Chipset	Z690
Procesoare suportate	12th Gen Intel Core, Pentium Gold and Celeron Processors
Format	ATX
Video	Necesita procesor cu tehnologia Intel HD Graphics
Memorie
Memorie maxima	128 GB
Tip memorie	DDR5
Frecventa	6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 MHz
Numar canale	Dual channel
Sloturi	4
Sloturi
PCI Express x 16	1 x PCIe 5.0 x16<br>1 x PCIe 4.0 x16 (x4)<br>2 x PCIe 3.0 x16 (x4)
M.2	x 3
Conectori
SATA III	x 4
Back panel	1 x USB 3.2 Gen 2x2 Type C port1 x USB 3.2 Gen 2 port<br>2 x USB 3.2 Gen 1 ports<br>2 x USB 2.0 ports<br>1 x DisplayPort<br>1 x HDMI port<br>1 x Wi-Fi Module<br>1 x Realtek 2.5Gb Ethernet port<br>5 x Audio jacks<br>1 x Optical S/PDIF out port<br>1 x PS/2 Keyboard/Mouse combo port
Interni	1 x 4-pin CPU Fan header<br>1 x 4-pin CPU OPT Fan header<br>1 x 4-pin AIO Pump header<br>3 x 4-pin Chassis Fan headers<br>1 x 24-pin Main Power connector<br>1 x 8-pin +12V Power connector<br>1 x 4-pin +12V Power connector<br>3 x M.2 slots (Key M)<br>4 x SATA 6Gb/s ports<br>1 x USB 3.2 Gen 1 connector (supports USB Type-C)<br>2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports<br>2 x USB 2.0 headers support additional 4 USB 2.0 ports<br>3 x Addressable Gen 2 headers<br>2 x AURA RGB headers<br>1 x Clear CMOS header<br>1 x COM Port header<br>1 x Front Panel Audio header (AAFP)<br>1 x SPI TPM header (14-1pin)<br>1 x 20-5pin System Panel header<br>1 x Thunderbolt header
Caracteristici
Accesorii incluse	2 x SATA 6Gb/s cables<br>1 x ASUS Wi-Fi moving antenna<br>1 x I/O Shield<br>1 x M.2 Rubber Package<br>2 x M.2 SSD screw packages<br>1 x Support DVD<br>1 x User guide
Iluminare LED	2 x 4-pin RGB 12V<br>3 x 3-pin ARGB 5V
Update BIOS	ASUS EZ Flash 3
